While many companies are giving up on the Caliber SRT-4 by discontinuing parts, we here at Modern Performance love the Caliber SRT4 and want to keep CSRT4's around as long as possible.
Carrillo and K1 Technologies were the last two manufacturers with direct replacement performance connecting rods that no longer produce for the Caliber SRT-4. With a connecting rod void in this market, we have decided to work with Manley Performance to bring a few direct replacement high performance connecting rods back to the market! We are the exclusive dealer for these rods, so you wont find these anywhere else.

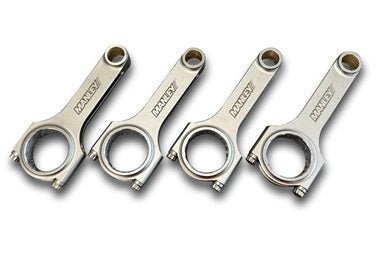

We now stock the Manley H-Tuff(ARP2000) and H-Tuff Plus (APR625+) connecting rods for the Caliber SRT-4! The H-Tuff rods start with heavier duty thicker forgings than the traditional H-Beam and specs are as follows;
- H-TUFF (ARP 2000 Rod Bolts) 750 Horsepower Rated
- H-TUFF +(ARP 625 PLUS Rod Bolts) 950 Horsepower Rated
- 3/8 Size ARP Cap Fasteners
- Heat treated and Forged 4340 Steel
- Stress Relieved, Shot Peened, and 100% Magnafluxed
- Weight Matched sets +/- 1.5 Grams
- Full Floating/ Bushed Wrist Pin W/ Dual oiling Holes
- Wider Beam with Increased Cross-Sectional Thickness
Rod specs:
- Center to Center length 142.6972mm
- Main Bearing Bore Diameter 51.0032mm
- Main Bearing Width 21.844mm
- Pin End Bore 22.00mm
- H-Beam Rod
- Wrist Pin Journal Bushing Width 25.019mm
- Wrist Pin Style - Floating
These rods will NOT work on OEM pistons!
