    Model Number :
$549.99
/

We now carry the Kinnettic Kreations Wire Tuck Engine Harness for the 03-05 Neon SRT-4.

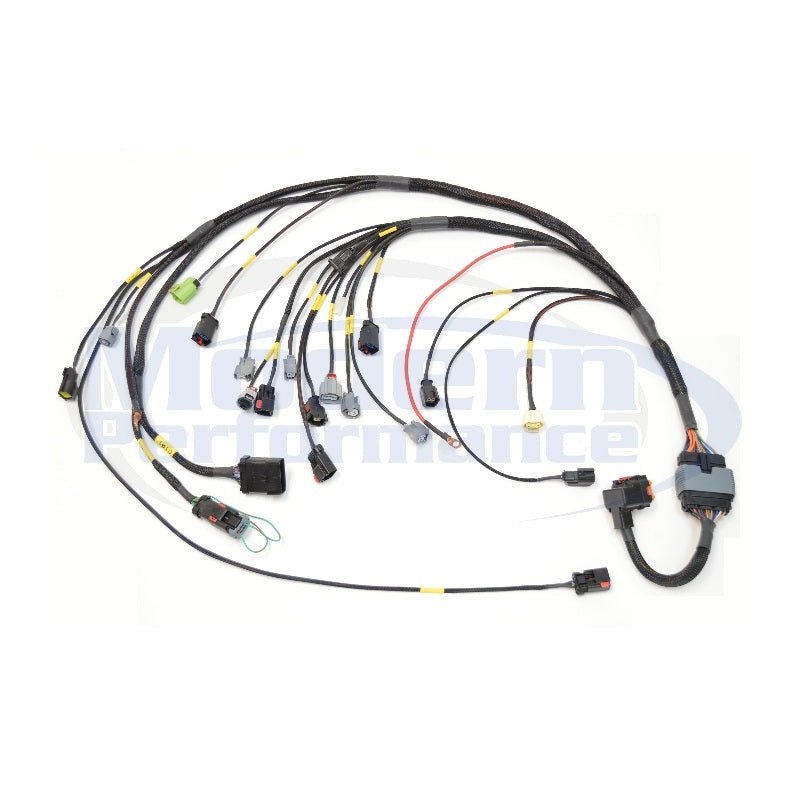

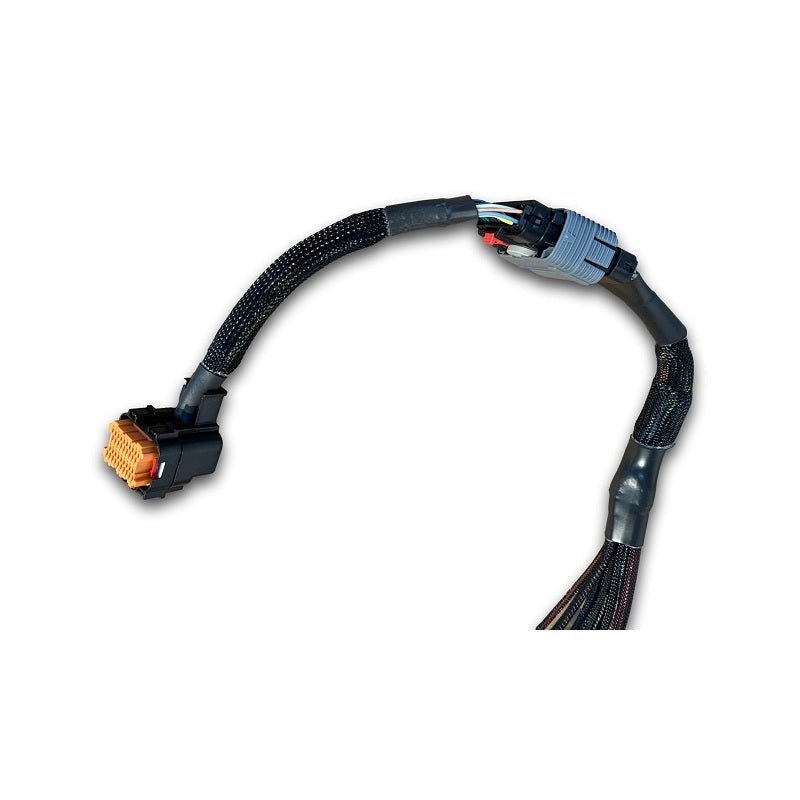

This is a brand new tucked SRT-4 engine harnesses. Pre-wired for WOT boxes and the PCM connector detaches from engine harness. Either to later hook up to our tucked engine bay harnesses, or for easily wiring in standalone/piggyback controllers like MS, FIC, or any others.


Front half of harness runs up underneath the intake manifold where it splits to all the sensors on front of block. Back half routes runs under oil pan next to transmission. 1 split runs along the jackshaft housing to the o2 sensor, alternator, and up around to the coil pack while the other branch runs up to C101 however fits with your exhaust setup.

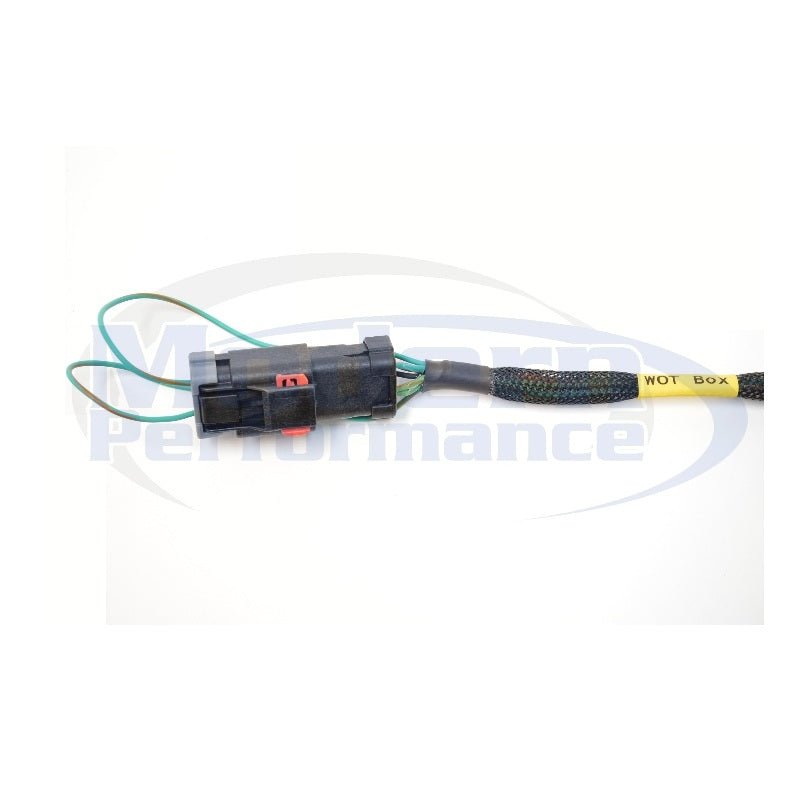

6-pin connector next to C101 has the wires for the WOT box run to it, and comes with a jumper plugged in, looping the ASD wire feeding the injectors and coil pack. Simple unplug jumper, plug in our WOT box adapter harness, and run harness through firewall. Plug into the wot box, and hook up the clutch pedal jumper. No splicing required! Or, get the plug and play Wire Tuck Engine Harness wot box kit (sold seperately).

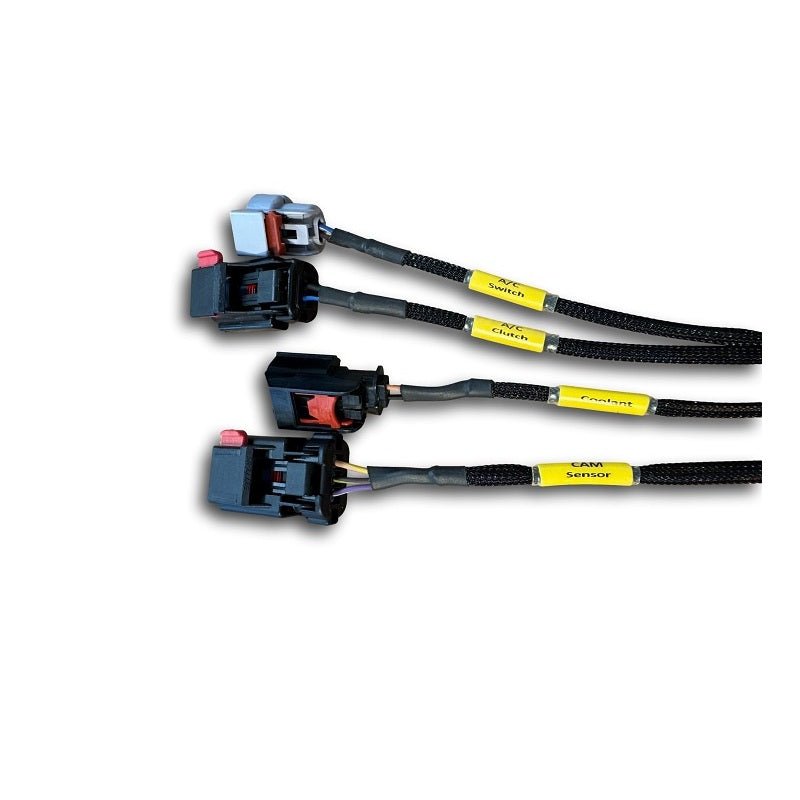

Includes connections for the following:


  • A/C Clutch
    - A/C Switch
    - Alternator
    - C101
    - Cam Sensor
    - Coil Pack
    - Coolant
    - Crank
    - IAC
    - Injectors 1-4
    - Intake Temp
    - Knock
    - MAP Sensor
    - O2 Sensor
    - Oil Pressure
    - Speed Sensor
    - Starter
    - TPS
    - WOT Box

If you are buying this engine harness and you want to install a N2MB wot box even easier, than use the search bar and enter this part number 701154-STAGE2EH-1

That harness makes installing a wot box even easier with the full engine harness kit.
